Y type strainer for Water and steam filter

Y type strainer  for Water and steam filter
Y type strainer for Water and steam filter
Send Inquiry
Product Code : 002
Brand Name : MMT ENERGY SOLUTIONS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 2500 to 10000 INR
Product Specifications
  • Style
  • Horizontal
  • Pressure
  • Other
  • Fuel Type
  • Other
  • Temperature
  • 90 Celsius (oC)
  • Output
  • Other
  • Material
  • CI
  • Part Type
  • Other
  • Weight
  • 500 Grams (g)
  • Function
  • All
Product Description
End Connection:: Flange Connect Design Pressure.: PN10 , PN16

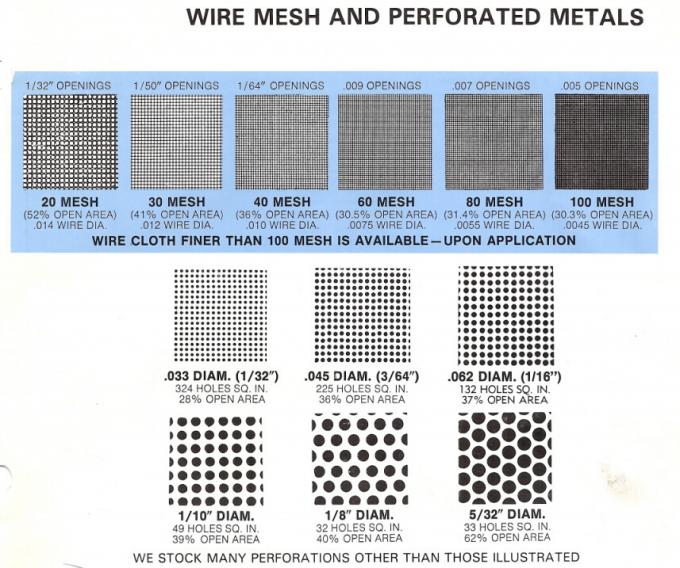

Filter Mesh Size.: As Your Requirement Design Specific Fluid Gravity.: Design Specific Fluid Gravity.
Body: A216 WCB Filter/ Screen: SS 304 / SS 316 / Stainless Steel
Size: DN 50~ DN1000 Medium: Water, Oil, Gas Etc.,

Cast  Steel A216 WCB Y Strainer With SS304 Screen , Plug and Drain Valve



Brief introduction:



The strainer may be used on all types of pipelines to collect granulated foreign substances and

contaminants collected. It can improve the clearance in the medium, and prolong the life of valves

and other equipments. It is suitable for wafer, petroleum and steam.



Mail part & material

Body: gray cast iron, cast iron, ductile iron

Filter: stainless steel

O-ring: NBR



Technical Specification

- Nominal diameter: 65~500mm

- Nominal pressure: 1.0/1.6/2.5Mpa



FEATURES
•  Iron strainers are complete with Flat Face (Series 125YF) or Raised Face (Series 250YF)
    flanges in accordance with ASME B16.1.


•  Strainer body meets applicable ASME Standard.


•  One piece cast body.


•  Strainers equipped with bolted cover flange that utilize a flat gasket seal.


•  Low pressure drop.


•  Upper and lower machined seats.


•  304 SS perforated screens are standard.


•  Drain/Blow-off connection furnished with plug as standard.


•  Generous screen area and properly proportioned straining chamber to minimize initial pressure

    drop while maximizing time between cleanings.


•  Compact end to end dimension.





STRAINER INSTALLATION INSTRUCTIONS
A . Ensure all machined surfaces are free of defects and that the inside of the
strainer is free of foreign objects.
B .  For horizontal pipelines, the strainer should be installed so that the drain
connection is pointed downwards.
C .  For flanged end strainers, the flange bolting should be tightened gradually in
a back and forth clockwise motion.
D .  Once installed, increase line pressure gradually and check for leakage around joints
E .  If the strainer is supplied with a start-up screen, monitor pressure drop carefully.


Water Meter Steam Strainer With Plug and Drain Valve PN16 / Y Type Filter





SIZE INCH 2 2½ 3 4 5 6 8 10 12 14 16 18
MM 50 65 80 100 130 150 200 250 300 350 400 450
A INCH 7.875  10  10.125  12.125  15.625  18.5  21.625  25.75  30  33.25  38.75  43.12
MM 200  254  257  308  397  470  549  654  759  846  984  1095
B INCH 5.25  6.5  7.5  13.125  15.75  18  18.5  22  28.625  30  31
MM 133  165  190  227  335  401  457  471  557  727  762  788
C INCH 2.5  10  12  14  16  18
MM 51  65  76  102  127  152  203  254  305  356  406  457
Weight kgs 13 16 21 30 43 60 90 140 175 392 627 1032

Trade Information
  • FOB Port
  • GURUGRAM
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • As required Per Day
  • Delivery Time
  • 2 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Customized
  • Main Domestic Market
  • North India
  • Certifications
  • iso
